Product description:

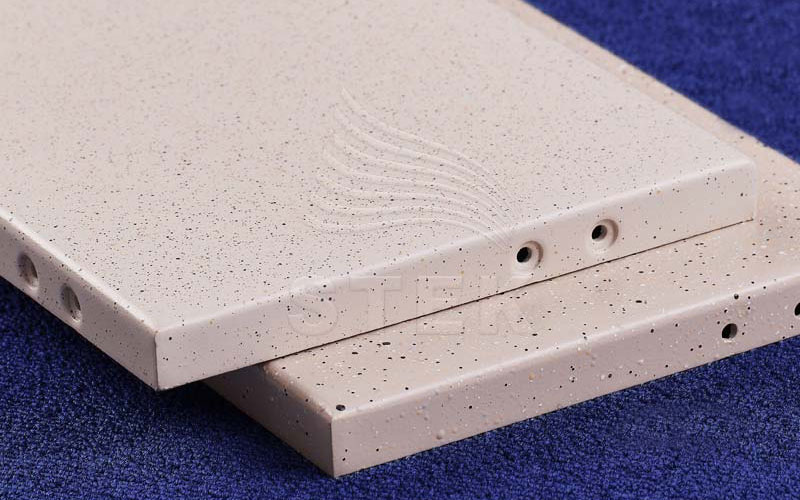

Aluminum veneer is a new type of curtain wall material that uses high-quality aluminum alloy sheet as the base material, and is formed by CNC bending and other technologies, and the surface is sprayed with decorative coatings.
The surface of the aluminum veneer curtain wall is generally treated with fluorocarbon spraying after pretreatment such as chromization. The polyvinylidene fluoride resin (KANAR500) of fluorocarbon coating topcoat and varnish (KANAR500 is generally divided into two coatings, three coatings or four coatings. Fluorocarbon coatings have excellent corrosion resistance and weather resistance, and can resist acid rain, salt spray and various Kind of air pollution, excellent cold and heat resistance, resistance to strong ultraviolet radiation, long-term retention of color, non-chalking, and long service life. Choose high-quality fluorocarbon coatings from world-renowned fluorocarbon coatings and coatings manufacturers, Wide choice of colors, customers can choose or provide swatch samples according to the swatches provided by the manufacturer.
Features:
1. Light weight, good rigidity, high strength 3.0mm thick aluminum plate weighs 8kg per square plate, and the tensile strength is 100-280n/mm2
2. Good durability and corrosion resistance. PVDF fluorocarbon paint based on kynar-500 and hylur500 can be used for 25 years without fading.
3. Good craftsmanship. The aluminum plate can be processed into a variety of complex geometric shapes such as plane, arc and spherical surface by adopting the process of processing first and then spraying paint.
4. Uniform coating and diverse colors. Advanced electrostatic spraying technology makes the paint and aluminum plate adhere uniformly, with various colors and large selection space.
5. Not easy to stain, easy to clean and maintain. The non-adhesiveness of the fluorine coating film makes it difficult for contaminants to adhere to the surface, and it has good cleanliness.
6. Convenient and quick installation and construction. The aluminum plate is formed in the factory, and the construction site does not need to be cut, and it can be fixed on the frame.
7. It can be recycled and reused, which is good for environmental protection. Aluminum plate can be 100% recycled, which is different from decorative materials such as glass, stone, ceramics, aluminum-plastic panels, and has a high residual value.
Product structure:

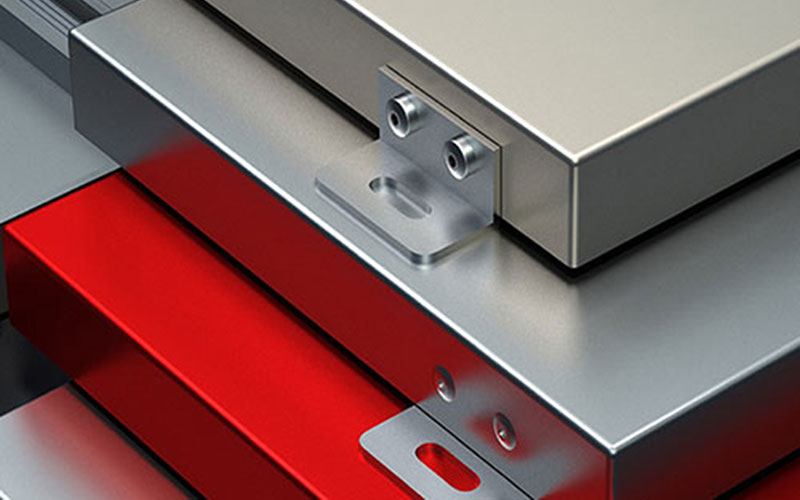

The aluminum veneer curtain wall is mainly composed of panels, stiffeners, hanging ears, etc. Generally, a 20mm wide edge is folded around the panel; the hanging ears and the panel are mainly connected with blind rivets, and the panel is connected with the bone dragon through the hanging ears; the back of the panel is welded with bolts, and the reinforcing ribs and the panel are connected by bolts to form a firm Overall. The reinforcing ribs play a role in increasing the rigidity of the aluminum veneer, ensuring the wind pressure resistance and flatness of the aluminum veneer in long-term use.
