product description :

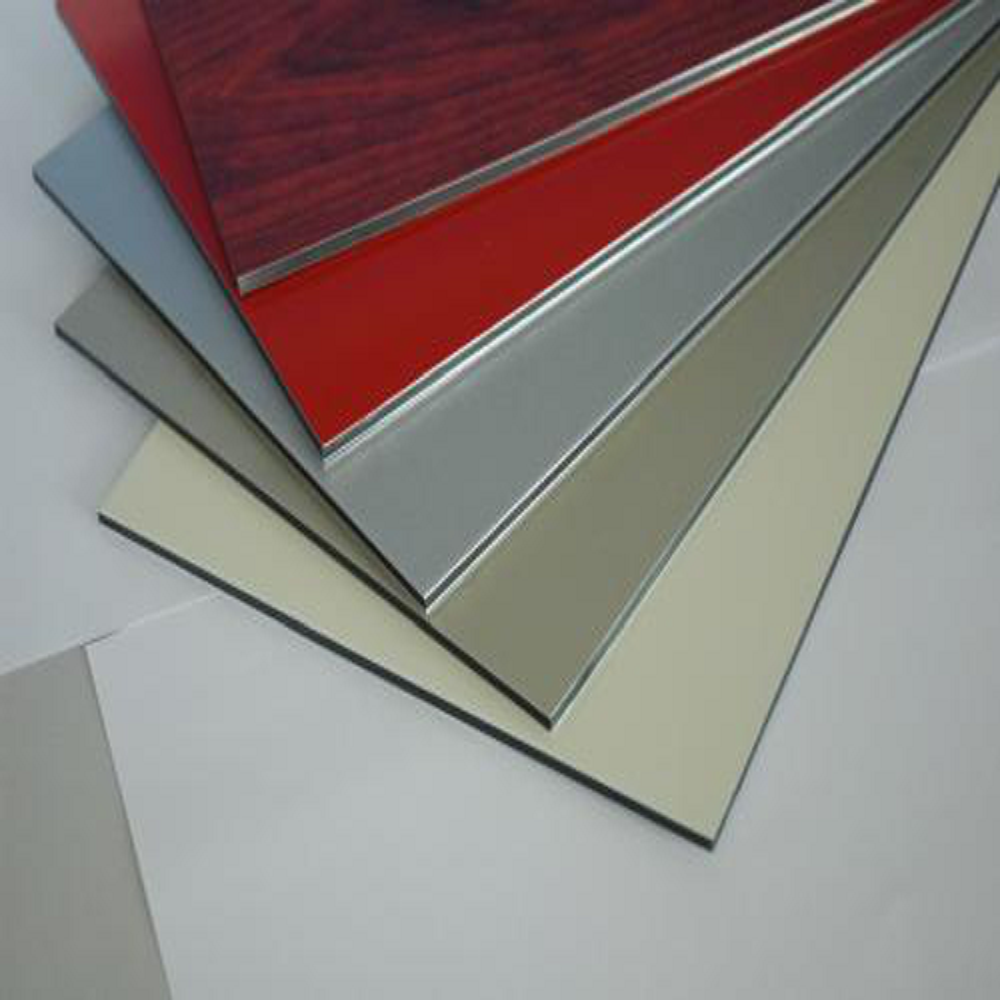

The full name of aluminum-plastic panel is aluminum-plastic composite panel, abbreviated as aluminum-plastic panel. It is a new type of material that is processed and compounded by a series of processes by using surface-treated and painted aluminum panel as the surface layer and polyethylene plastic panel as the core layer.
Product Features:
Super peeling strength: The new technology is adopted to improve the peeling strength, the most important technical index of the aluminum-plastic composite panel, to an excellent state, and at the same time, the flatness and weather resistance of the aluminum-plastic composite panel are correspondingly improved.
Super weather resistance: PVDF coating based on Hylar5000 or Kynar500 has unique advantages in corrosion resistance, pollution resistance, and weather resistance. It will not damage the beautiful appearance of the product regardless of whether it is in the hot sun or the severe cold wind and snow.
Light material and easy to process: The aluminum-plastic composite panel weighs 5.6kg per square meter, which can reduce the hazard of earthquake disasters and is easy to handle. Its superior construction ability can be cut, cut, edged, and bent with simple woodworking tools. Various shapes such as arcs and right angles can cooperate with designers to make various changes. The installation is simple and fast, and the construction cost is reduced.
Classification, size:
Classification: According to the burning performance of curtain wall panels, it is divided into ordinary type and flame-retardant type.
Specifications and dimensions: The common specifications and dimensions of curtain wall panels are as follows:
Length: 2000, 2440, 3000, 3200, etc., in mm
Width: 1220, 1250, 1500, etc., in mm.
Minimum thickness: 4, the unit is mm.
The length and width of the curtain wall panels can also be negotiated between the supplier and the buyer.
Size tolerance:
Thickness: Use a thickness measuring instrument with a minimum graduation of 0.01mm to measure the thickness at least 20mm from the edge of the board. These measuring points should include at least the thickness of the four corners and the midpoint of the four sides. Take the limit value error between all the measured values and the nominal value as the test result.
Length (width): The length is on both sides of the board width, and the width is measured on both sides of the board length with a steel tape with a minimum graduation of 1mm. Take the limit value error between all the measured values of length (width) and the nominal value as the test result.
Scope of application of aluminum composite panel:
• Airport / terminal / station / subway / shopping mall / hotel / hotel / entertainment venue / high-end residential / villa / office building curtain wall decoration and interior decoration
• Large advertising signs/display windows/roadside newsstands/book stands/telephone booths/traffic booths/roadside petrol stations
• Indoor wall/ceiling/partition/kitchen/toilet/wall foot protection
• Store decoration/shop inner shelf/shelf/column/furniture
• Refurbishment of old buildings • Purification and dust prevention works
• Train/car/ship/passenger carriage decoration
